V-200

Product Features

The V series can achieve bag craft synchronized with luxury paper bag V-bottom craft, break through technical barriers, and subvert the traditional process of that semi-auto paper bag making machine and manual combination, this machine can realize that one sheet paper feeding till the finished bag output, to achieve the quality of thousands of bags as the same standard for the vertical chain of users to provide protection.
This entire machine can be customized with intelligent full servo (E model), bottom card auto-putting. Rope inserting is an optional function.This machine is an excellent solution for producing high-quality paper bags with luxurious artistry.

Paper bag making process

equipment to make paper bags

Technical parameters

Standard Top Folding Joint Type : Insert Pasting
big paper bags making machine

The glue position is on the big side (bag surface)

Option:4pcs Top Reinforce Cardboard Function
big bag production line

Automatic Bottom Cardboard Inserting

Sheet Size And Top Card Position
machines for making big bags

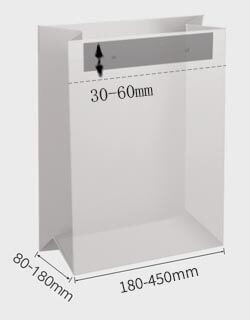

Bag Size
big gift paper bag gluing machine
Top Reinforce Cardboard Size
luxury shopping bag machine
Technical data
No. V200
Max.One Sheet(L*W) 1200*600mm
Min.One Sheet(L*W) 540*320mm
Paper Weight 170-300gsm
Bag Width 180-430mm
Bottom Width 80-180mm
Bag Tube length 280-570mm
Top Folding Depth 30-60mm
Top Reinforced Paper Weight 250-500gsm
Top Reinforced Paper Width 25-50mm
Top Reinforced Paper Length 160-410mm
Production Speed 50-60bags/min
Total/Production power 31/22KW
Voltage 380V
Total weight 22T
Machine size(L x W x H) 30000*2700*1800mm
Glue Type Water Base Glue And Hot-melt Glue
Main parts brand

No. Name Origin Brand No. Name Origin Brand
1 Feeder China RUN 12 Bearing Germany BEM
2 Main motor China Fangda 13 Belt Japan NITTA
3 PLC Japan Mitsubishi 14 Synchronize belt Germany Continental
4 Frequency converter France Schneider 15 Air pump Germany Becker
5 Button Germany Eaton
Moller
16 Pneumatic component Taiwan/Japan Airtac/SMC
6 Electric relay Germany Weidmuller 17 Pilot valve Taiwan/Japan Airtac/SMC
7 Air switch Germany Eaton
 Moller
18 Photoelectric switch Korea/Germany Autonics/Sick
8 AC contactor Germany Eaton
 Moller
19 Hot melt glue system America Nordson
9 Wiring terminal Germany Weidmuller 20 Servo motor Taiwan Delta
10 Touch screen Taiwan Weinview 21 Servo gear box Japan Desboer
11 Switching Power Supply Taiwan MW
