E-260

Product Features

This series of machines is a patented product independently developed by Zenbo (ZL200652588.2 : ZL 2015 1 0162894.9 ZL 2015 1 0044478.9 ) , which is a high-end product of CT series , represents a new height of the intelligent of sheet feeding paper bag making machine, This series is fully servo-driven , with memory intelligent size changing function(Operators can use mobile devices such as iPads to control the machine through WIFI),greatly reducing the technical requirements of size changing , and significantly save the time to change the size , increase efficiency and productivity for the user. Solving the problem of fully automatic production of small quantities of multiple varieties of paper bags , creating more market value for the user. After the servo size change , the equipment runs with higher stability , and the quality of paper bags is more reliable . This series is suitable for paper weight above 110gsm,with automatic top cardboard pasting , top folding ( insert pasting ) and bottom card inserting can customize 4-piece top cardboard function , which can meet the production needs of all kinds of luxury bags and high-quality boutique bags . CT series machines have served many global first-tier famous brands and are sold to Germany , Italy , the United States and other dveloped countries in Europe and the United States , as well as South America , Southeast Asia and other developing countries , with annual sales exceeding 100 sets.

luxury paper bag making machine sheet fed

If you are a manufacturer of luxury paper bags and boutique paper bags , have strict require -ments for the quality of paper bags , and you need to solve the problem of small batch and multi-species production , this series is a very ideal choice for you.

machine to make grocery bags

(▲You can click the picture see the machine work flow in youtube)

Paper bag making process

paper bags making machine from sheet

Technical parameters

Standard Top Folding Joint Type : Insert Pasting
sheet fed bag making equipment

The glue position is on the big side (bag surface)



Standard Bottom Cardboard Pre-stack Function
sheets feeding bag making machine



Option:4pcs Top Reinforce Cardboard Function
paper bag machine for paper sheet
Option:Pre-punch Hole Function
paper bag machine fully automatic sheets
Option:Middle Seam Glued Bags
Option:Die Cut Function
paper bag die cutting and creasing machine
Automatic Top Reinforced Cardboard Pasting

Automatic Top Folding

Sheet Size And Top Card Position
paper bag making machine with top card

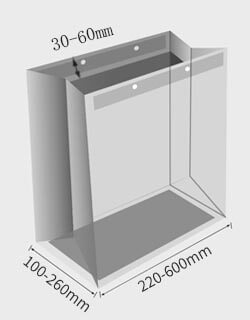

Bag Size
paper carrying bag production machine
Top Reinforce Cardboard Size
boutique paper bag making machine
Bottom ReinforceCardboard Size
luxury paper bag machines
Technical data
No. E260
Max.One Sheet(L*W) 1450x760mm
Min.One Sheet(L*W) 780x380mm
Paper Weight 170-250gsm
Bag Width 280-550mm
Bottom Width 100-250mm
Bag Tube length 350-730mm
Top Folding Depth 30-60mm
Top Reinforced Paper Weight 200-500gsm
Top Reinforced Paper Width 25-50mm
Top Reinforced Paper Length 260-530mm
Bottom Cardboard Weight 250-400gsm
Bottom Cardboard Width 94-244mm
Bottom Cardboard Length 274-544mm
Production Speed 30-60bags/min
Total/Production power 66.5/39.9KW
Voltage 380V
Total weight 25.3T
Machine size(L x W x H) 23200*6300*1800mm
Glue Type Water Base Glue And Hot-melt Glue



Main parts brand
No. Name Origin Brand No. Name Origin Brand
1 Feeder China RUN 12 Bearing Germany BEM
2 Main motor China Fangda 13 Belt Japan NITTA
3 PLC Japan Mitsubishi 14 Synchronize belt Germany Continental
4 Frequency converter France Schneider 15 Air pump Germany Becker
5 Button Germany Eaton
Moller
16 Pneumatic component Taiwan/Japan Airtac/SMC
6 Electric relay Germany Weidmuller 17 Pilot valve Taiwan/Japan Airtac/SMC
7 Air switch Germany Eaton
 Moller
18 Photoelectric switch Korea/Germany Autonics/Sick
8 AC contactor Germany Eaton
 Moller
19 Hot melt glue system America Nordson
9 Wiring terminal Germany Weidmuller 20 Servo motor Taiwan Delta
10 Touch screen Taiwan Weinview 21 Servo gear box Japan Desboer
11 Switching Power Supply Taiwan MW
